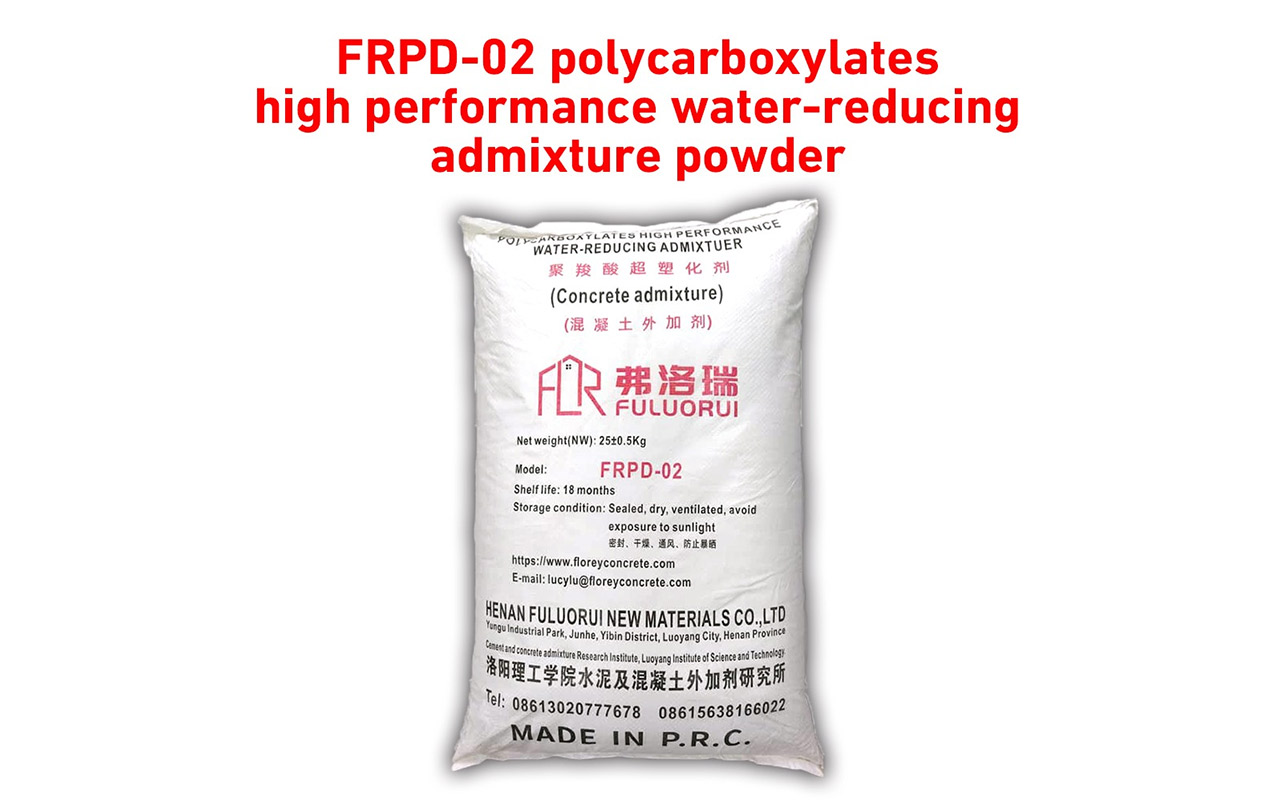

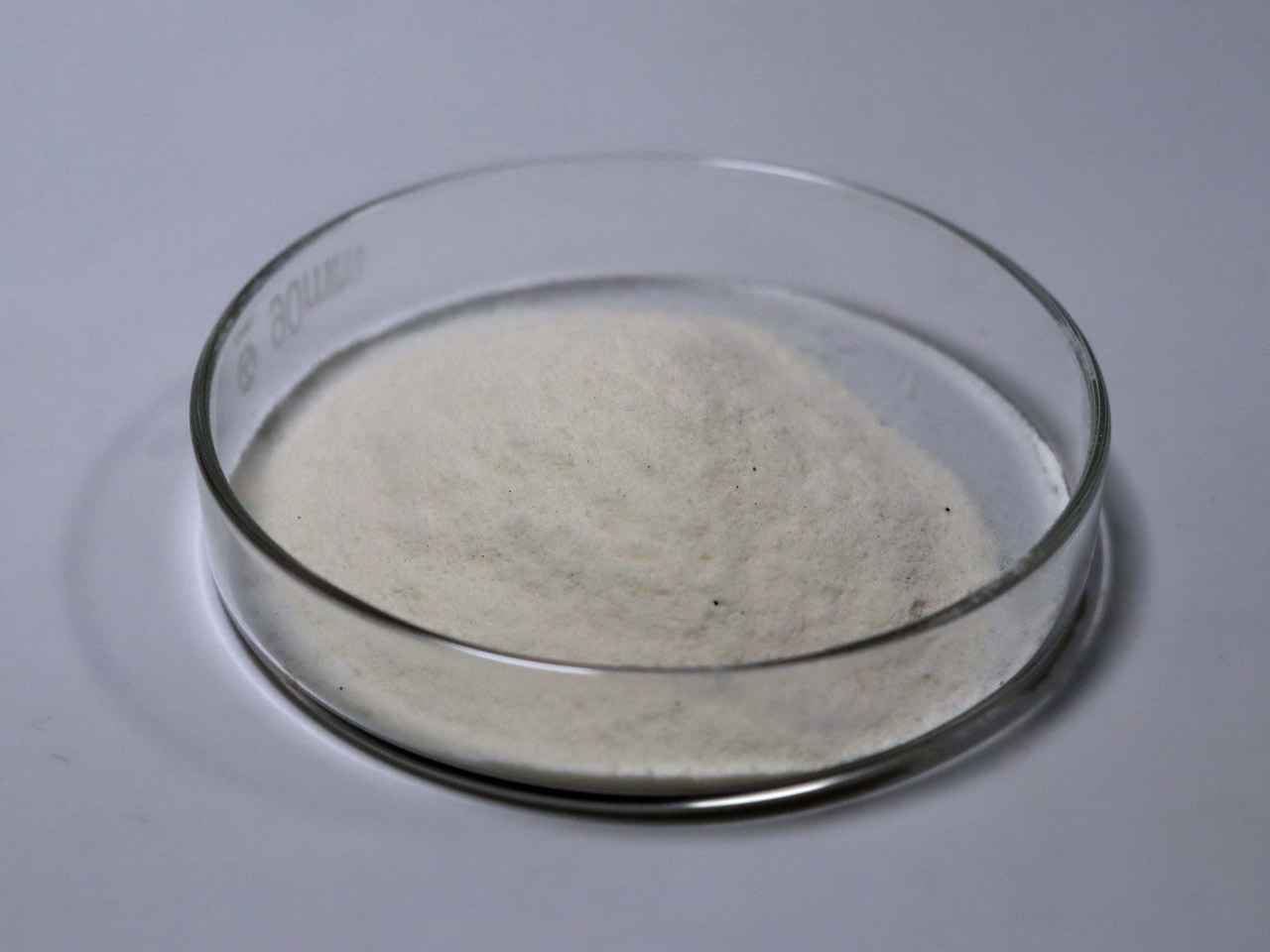

PCE Powder FRPD-02

Product Description

FRPD-02 is a powder product of polycarboxylic acid high performance water reducing agent produced by C6 technology. Unlike traditional polycarboxylic acid powder water reducing agent, there is no spacer in the product and it can be completely dissolved in water. FRPD-02 is designed based on special ionic functional groups and molecular conformation. With steric hindrance and strong electrostatic repulsion, FRPD-02 can effectively improve the adsorption and dispersion ability of water reducer and the adaptability to concrete raw materials, and has the characteristics of high water reduction rate, excellent plastic retention and high reinforcement. The water reduction rate of concrete is ≥25%, and the water reduction rate can be as high as 35% in different mix applications. It is widely used in hydropower, nuclear power, railway, highway, port, bridge, tunnel, house, workshop floor, underground structure construction and other concrete projects. FRPD-02 can be directly added to cement and gypsum based mortar products that require powder water-reducing agents, such as self-leveling cement, self-leveling gypsum, grouting material, grouting material, pavement repair material, steel fiber grouting material, etc. In these powder building materials that need to use high water reducing properties of water reducing agents, this product can replace the original powder products, and will reduce the amount, because you originally used polycarboxylic acid powder has 10% of the ineffective ingredients. The technology is very mature and the product quality is stable. You are welcome to compare its performance with the product you are using.

Product Type

The contents of the products available are: Powder product (FRPD-02) 98%.

The contents of the products available
Name	Solid content
Liquid products (FRPC-02)	40%	50%	55%
Powder product (FRPD-02)	98%

PCE Product Type
No.	Type
FRPC-02	polycarboxylates high performance water-reducing admixture
FRPC-09	comprehensive properties polycarboxylate superplasticizer
FRPC-18	high-performance polycarboxylate slump retention agent
FRPD-02	polycarboxylates high performance water-reducing admixture powder
FRPD-09	comprehensive properties polycarboxylate superplasticizer powder
FRPD-18	high-performance polycarboxylate slump retention agent powder

Formula

Taking the temperature of 30℃and 1.0Kg(L)/100Kg cement as an example, the following formula test can be used when the slump of concrete is required to be maintained at 220mm for 1 hour:

Product Compounding Formula
Material	Dosage（kg）			Notes
	Formula 1	Formula 2
FRPD-02（98%）	/	123-183		The specific dosage was determined by concrete mix ratio test
FRPC-02（40%）	300-450	/
Sodium gluconate	20-40	20-40		It depends on the temperature and setting time
Sucrose	5-10	5-10		It depends on the temperature and setting time
Other special materials	?	?		It depends on the circumstances
Air Entraining Agent	1.2-1.8	1.2-1.8		If there is no requirement for gas content, the lowest value can be taken
Deodorant	0.3	0.3		You can use it in two days and you don't have to add it
Water	Add water to 1000Kg			Clean water
The data is for reference only, and the specific formula should be determined by test.
